AMI 3,0 ECO LINE
Hydraulic 2-post lift
-
Load capacity 3000 kg
-
Push-button control
-
Asymmetric design
-
Economically profitable hydraulic drive
-
Double-acting roof dent protection
-
Ergonomic cover
-
Arm lock (SLS - self locking system)
-
Easy to operate
-
Czech made
-
Complies to requirements
of ČSN EN 1493:2023 (EN 1493:2022)
AMI 3,0 ECO LINE
TECHNICAL SPECIFICATION
3000 kg
Maximum load capacity
23 s
Maximum lifting time
27 s
Minimum lowering time
TN-S 3/N/PE 400/230V AC, 50 Hz
Electric system
3,0 kW
Motor power
1885 mm - 1915 mm
Maximum arm height HO
90 mm - 120 mm
Minimum arm height HU
570 mm - 890 mm
Short arm extension LK
930 mm - 1480 mm
Long arm extension LL
3610 mm
Maximum clearance height HL
3740 mm
Total height HG
2565 mm
Post clearance BL
2220 mm
Clearence width BH
3135 mm
Total width BG
590 mm - 1400 mm
Double-jointed arm extension LDJ
726 mm - 1447 mm
Extension of 3-stage arm L3D
758 mm - 1447 mm
Extension of 3-stage arm L3DLp
845 mm - 1265 mm
Extension of lowered long arm LLLp
615 mm - 900 mm
Extension of lowered short arm LKLp
3,80 m
Length
1,12 m
Width
0,45 m
Height
570 kg
Weight
-
The lift is in partially disassembled condition, packed in a transport frame including accessories.
-
Professional assembly by trained service personnel is necessary. Professional assembly is a condition for the validity of the warranty.
-
For assembly, a space 100 mm higher than the total height of the lift is required.
-
Hydraulic medium: OHHM 32, 8 litres
-
C20/25
Concrete quality
135 mm
Minimum thickness of concrete floor
100 mm
Depth of effective anchorage
M16x140 mm
Anchor dimensions (diameter x length)
TN-S 3/N/PE 400/230V AC,
50 HzElectrical system
16/3/C
Residual circuit breaker
IP 54
Ingress protection
Flexible cable H05VV-F
Supply
- change of technical data reserved
AMI 3,0 ECO LINE
MODEL CONFIGURATIONS
CONTROL AND ACCESS SIDE = 4 x double-jointed arm
(590 mm - 1400 mm)
CONTROL SIDE = 2 x 2-stage short arm
(570 mm - 890 mm)
ACCESS SIDE = 2 x double-jointed arm
(590 mm - 1400 mm)
CONTROL SIDE = 2 x 2-stage long arm
(930 mm - 1480 mm)
ACCESS SIDE = 2 x double-jointed arm
(590 mm - 1400 mm)
CONTROL SIDE = 2 x 3-stage arm
(726 mm - 1447 mm)
ACCESS SIDE = 2 x double-jointed arm
(590 mm - 1400 mm)
CONTROL AND ACCESS SIDE = 4 x 2-stage lowered short arm
(615 mm - 900 mm)
CONTROL AND ACCESS SIDE = 4 x 2-stage lowered long arm
(845 mm - 1265 mm)
CONTROL SIDE = 2 x 2-stage lowered short arm
(615 mm - 900 mm)
ACCESS SIDE = 2 x 2-stage lowered long arm
(845 mm - 1265 mm)
CONTROL SIDE = 2 x 2-stage long arm
(930 mm - 1480 mm)
ACCESS SIDE = 2 x 3-stage arm
(726 mm - 1447 mm)
CONTROL SIDE = 2 x 3-stage arm
(726 mm - 1447 mm)
ACCESS SIDE = 2 x 2-stage long arm
(930 mm - 1480 mm)
CONTROL AND ACCESS SIDE = 4 x 4 x 3-stage arm
(726 mm - 1447 mm)
CONTROL SIDE = 2 x 2-stage short arm
(570 mm - 890 mm)
ACCESS SIDE = 2 x 3-stage arm
(726 mm - 1447 mm)
CONTROL AND ACCESS SIDE = 4 x 2-stage long arm
(930 mm - 1480 mm)
CONTROL AND ACCESS SIDE = 4 x double-jointed arm
(570 mm - 890 mm)
CONTROL SIDE = 2 x 2-stage short arm
(570 mm - 890 mm)
ACCESS SIDE = 2 x 2-stage long arm
(930 mm - 1480 mm)
CONTROL SIDE = 2 x 2-stage lowered short arm
(615 mm - 900 mm)
ACCESS SIDE = 2 x 3-stage lowered arm
(758 mm - 1447 mm)
CONTROL AND ACCESS SIDE = 4 x 3-stage lowered arm
(758 mm - 1447 mm)
CONTROL SIDE = 2 x 3-stage lowered arm
(758 mm - 1447 mm)
ACCESS SIDE = 2 x 2-stage lowered long arm
(845 mm - 1265 mm)
KONTROLLSEITE = 2 x 2-teiliger Arm abgesenkt lang
(845 mm - 1265 mm)
RAMPENSEITE = 2 x 3-teiliger Arm abgesenkt
(758 mm - 1447 mm)
AMI 3,0 ECO LINE
ADDITIONAL ACCESSORIES
030212-00-00
2-STAGE LONG ARM
LOW PROFILE (min. height: Hu=80 mm; extension: L=845-1265 mm)
030217-00-00
2-STAGE SHORT ARM
LOW PROFILE (min. height: Hu=80 mm; extension: L=615-900 mm)
092212-00-00
2-STAGE LONG ARM
(min. height: Hu=90 mm; extension: L=930-1480 mm)
092217-00-00
2-STAGE SHORT ARM
(min. height: Hu=90 mm; extension: L=570-890 mm)
492208-00-00
3-STAGE ARM
LOW PROFILE (min. height: Hu=82 mm; extension: L=758-1447 mm)
092208-00-00
3-STAGE ARM
(min. height: Hu=90 mm; extension: L=726-1447 mm)
492220-00-0S
DOUBLE-JOINTED ARMS
SET (min. height: Hu=90 mm; extension: L=590-1400 mm)
492100-00-00
ARM LOCK KIT "AS"
030294-00-0S
VULCANIZED SUPPORT "ROUND"
FOR ARMS WITH LOW PROFILE
SET (dia. 118 mm)
.jpg)
092294-00-0S
VULCANIZED SUPPORT "ROUND"
SET (dia. 118 mm)
.jpg)
092295-00-0S
VULCANIZED SUPPORT "RECTANGULAR"
SET (148x80 mm)
.jpg)
092296-00-0S
VULCANIZED SUPPORT "RECTANGULAR"
SET (120x70 mm)
.jpg)
398294-03-00
ADAPTER "PIN"
COMPLETE
.jpg)
397299-00-00
ADAPTER "V"
COMPLETE
.jpg)
398297-00-00
ADAPTER "U I"
COMPLETE
.jpg)
398298-00-00
ADAPTER "U II"
COMPLETE
.jpg)
398296-00-00
ADAPTER "ROUND"
COMPLETE
80301 | 80302
80303 | 80304
SUPPORT EXTENSIONS
(50 mm) | (100 mm) | (150 mm) | (250 mm)
092093-30-0S
EXTENSION AND SUPPORT HOLDER
SET
%20SADA.jpg)
092880-00-00
TROLLEY COVER "PUR3"
SET
%20SADA.jpg)
092870-00-00
TROLLEY COVER "PUR6"
SET
%20-%20DHZ%20AMI%203%2C0%20-%205%2C5.jpg)
000000-00-52

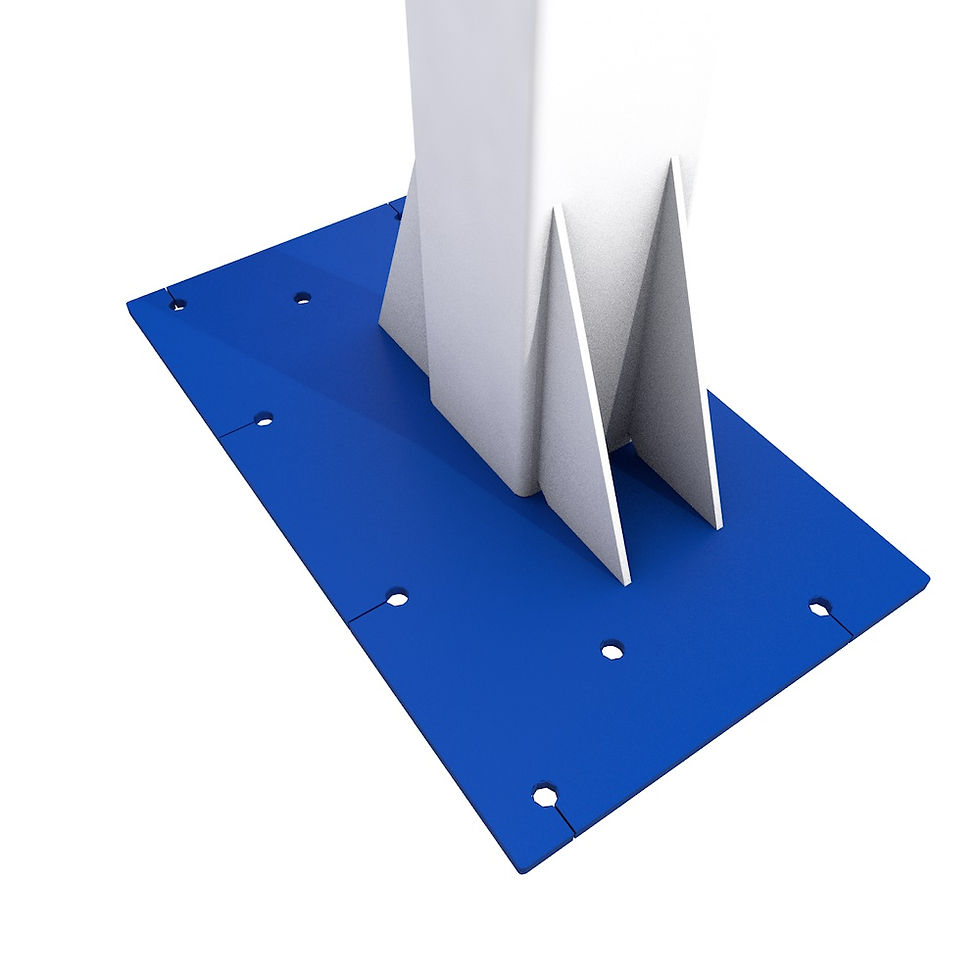

LARGE BASE FOR LOWER GROUND STRENGTH
000000-00-58
ANTI-CORROSION SPRAY TREATMENT
092094-00-00
092094-00-0S
ELECTRO BOX – EB1
"MASTER" | "SLAVE"
(2x230V)
092094-02-00
092094-02-0S
ELECTRO BOX – EB1-4
"MASTER" | "SLAVE"
(4x230V)
092095-00-00
092095-00-0S
ELECTRO BOX – EB2
"MASTER" | "SLAVE"
(2x230V, AIR QUICK COUPLER)
092096-00-00
092096-00-0S
ELEKTRO BOX – EB3
"MASTER" | "SLAVE"
(2x230V, AIR QUICK COUPLER, 2xDATA CONNECTOR)
092093-00-00
INTEGRATED POWER SUPPLY FOR CHARGING STATIONS
000000-00-53
INTEGRATED MOUNTING AND POWER SUPPLY OF BATTERY CHARGING STATION
092092-00-0M
092092-00-0S
AIR REEL
"MASTER" | "SLAVE"
(15 m)
092091-00-0M
092091-00-0S
ELECTRIC REEL
"MASTER" | "SLAVE"
(12 m; thermal fuse)
000000-00-17
DIFFERENT COLOR VERSIONS DHZ ACCORDING TO RAL COLOR CHART
000000-00-54
NON-STANDARD DEMAND
(HEIGHT | WIDTH)
000000-00-54
